BAC 420
Insulated container, Euro pallet 1200 x 800 mm, 417 L
Dimensions
. Outer: 1200 x 800 x 1100 mm
. Inner: 1000 x 600 x 695 mm
Volume: 417 litres
K-value: 0.33 W/m²°C
Unloaded weight: 98 kg
Dynamic load capacity: 600 kg
Static load capacity: 1200 kg
Temperature resistance: -80°C / +70°C
Material
. Walls: UV-resistant food-grade polyethylene (PE)
. Insulation: Expanded polyurethane foam (~90 mm)
. Gasket: Monobloc silicone frame seal
Standard equipment
. Lid: 80° gas strut assisted opening
. Chassis: Embedded steel frame with yellow zinc coating
. Castors: 4 wheels Ø 125 mm (2 fixed, 2 swivel)
. Drain: Stainless steel cable drain plug
. Handles: 4 rotationally molded handles
Colour: Turquoise
Logistics format: Euro pallet (1200 x 800 mm)
Application sectors: Cryogenics, Food, Health, Logistics
Certification: ATP (IR category)
Cold source: Eutectic plates (up to 2 x TOP 900)
Customisation options:
. Custom RAL colours
. Heat-sealed adhesive labels / Iron-on stickers
. Logo molded into the mass
. Engraved aluminium nameplate (150 x 90 mm)
. Set of wheels with brakes or set of metal feet (Ø 80 mm)
. Temperature and GPS tracking solution
Country of origin: Made in France

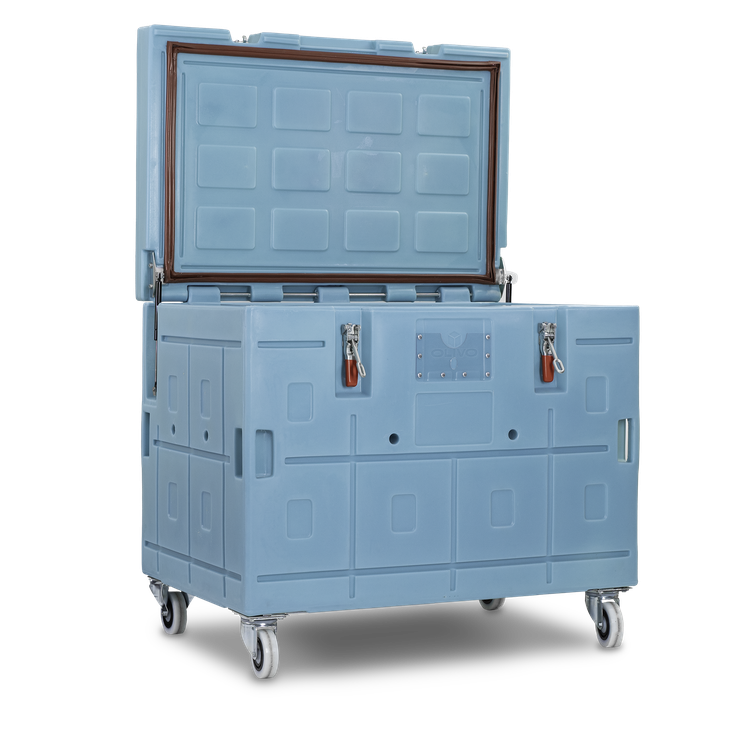

Insulated container OLIVO BAC 420 (417 L)
Chilled and frozen transport without refrigerated trucks
Professional insulated container matching the standard Euro pallet format (1200x800 mm). With an optimal capacity of 417 litres, the BAC 420 is a versatile choice for retail chains, pharmaceuticals, and dry ice logistics. It allows you to transport goods requiring different temperature zones within the same standard vehicle.
Why choose BAC 420:
. Euro pallet standard: Fits standard truck floors with zero wasted space.
. Transport savings: Multi-temperature transport in standard vehicles without expensive refrigeration units.
. Temperature retention: Seamless monobloc body with 90 mm polyurethane foam insulation keeps cold for up to 24-48 hours.
. Eutectic plates compatible: Engineered for TOP 900 cooling elements - no power connection or complex setup needed.
. Convenient loading: Lid locks at 80° using gas struts, keeping hands free.
. Damage protection: Recessed handles and latches prevent impact damage during handling.
. Easy maintenance: Smooth food-grade plastic, internal convection grooves, and a drain plug make washing fast and effortless.
OLIVO quality guarantee.
