Pallet Carrier with Stacking Frame – FEIL
Steel 1200x800

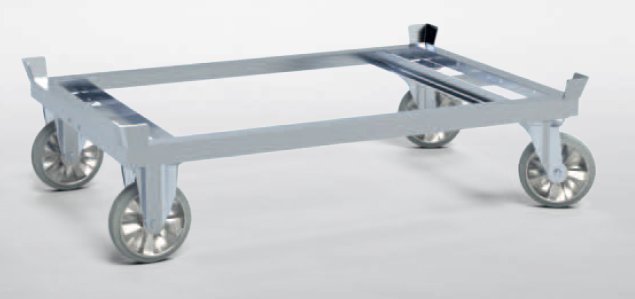

Pallet Carrier
Outer Dimensions L×W×H: 1260x860x350mm
Material: steel (hot-dip galvanized)
Frame profile: welded angle steel 50 × 50 × 5 mm
Load capacity: depending on castor type (TPR / PA / elastic / PUlastic)
| Tyres | Load capacity |
| TPR | 750kg |
| polyamide tyres | 1200kg |
| heavy duty elastic tyres | 1200kg |
| polyurethane - elastic tyres (PUlastic) | 2000kg |
Castors: optional — TPR, polyamide, heavy-duty elastic, PUlastic; swivel or fixed
Surface: hot-dip galvanized
Design: pallet carrier for EUR pallets and pallet cages
Features:
-
Catching plates on all four corners
-
High torsional rigidity
-
Compatible with stacking frames (160 / 260 / 360 mm)
-
Optional drawbar and coupling for towing

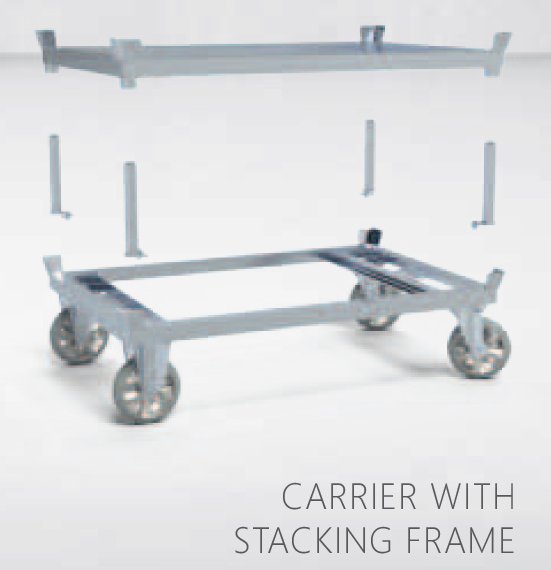

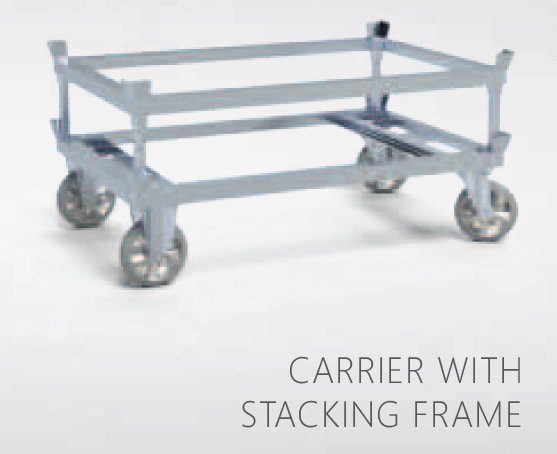

Stacking frame
Outer Dimensions L×W×H: 1260 × 860 × height depends on model
Available heights: 160 mm, 260 mm, 360 mm
Material: steel, hot-dip galvanized
Design: stacking frame for pallet carriers and EUR pallets
Features:
-
Welded steel construction
-
Increases stacking height and load security
-
Fits FEIL pallet carriers
-
High torsional rigidity
Made in Germany
Pallet Carrier with Stacking Frame – FEIL
The FEIL pallet carrier is a robust transport chassis designed for EUR pallets and pallet cages. The welded angle-steel frame (50 × 50 × 5 mm) provides high torsional rigidity and long service life in demanding warehouse environments.
Different castor types are available — TPR, polyamide, heavy-duty elastic or PUlastic — to match various load requirements and floor conditions. Catching plates on all four corners ensure secure pallet positioning.
Every pallet carrier can be retrofitted with stacking frames (160 / 260 / 360 mm) as well as a drawbar and coupling for towing. The hot-dipped galvanized finish offers strong corrosion protection.
