TC- / TC3-5 Palgrip® heavy

for heavy load

Delivery: FCA Marupe | DAP Baltics | 1–3 w | 15+ pcs.

Dimensions L×W×H: 1200 x 1000 x 160 mm

Material: HD-PE virgin

Temperature range: -30 °C to +40 °C, briefly up to +90 °C

Weight: 23 kg (TC3), 24 (TC3-5)

Load capacity Static: 7500 kg

Load capacity Dynamic: 1500 kg

Load capacity high rack: 1250 kg

Runners: 3 unwelded (TC3), 5 unwelded (TC3-5)

Rims: without rims

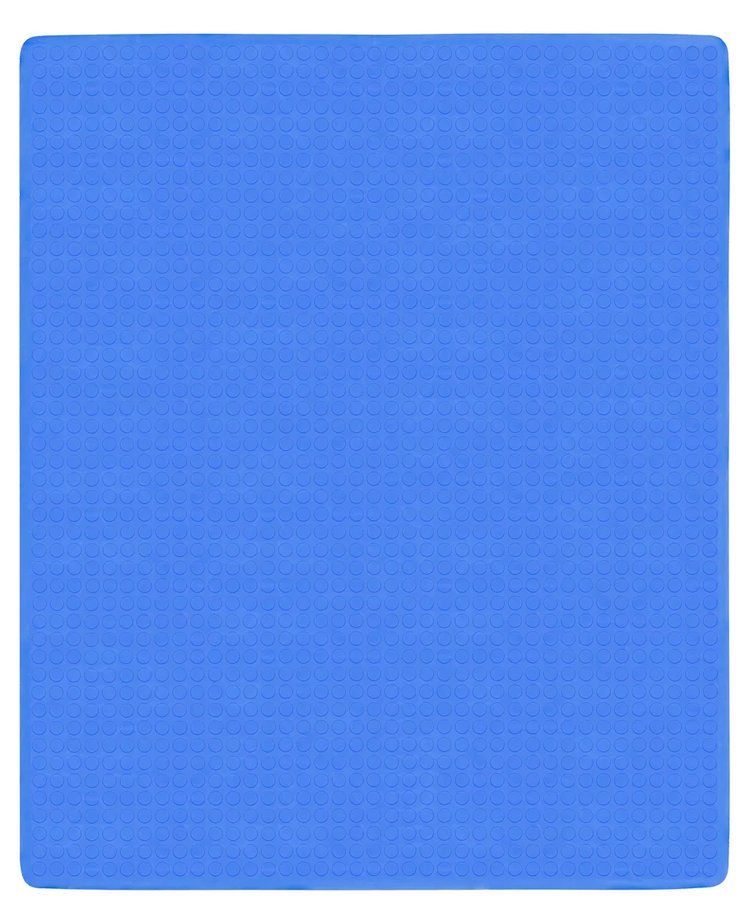

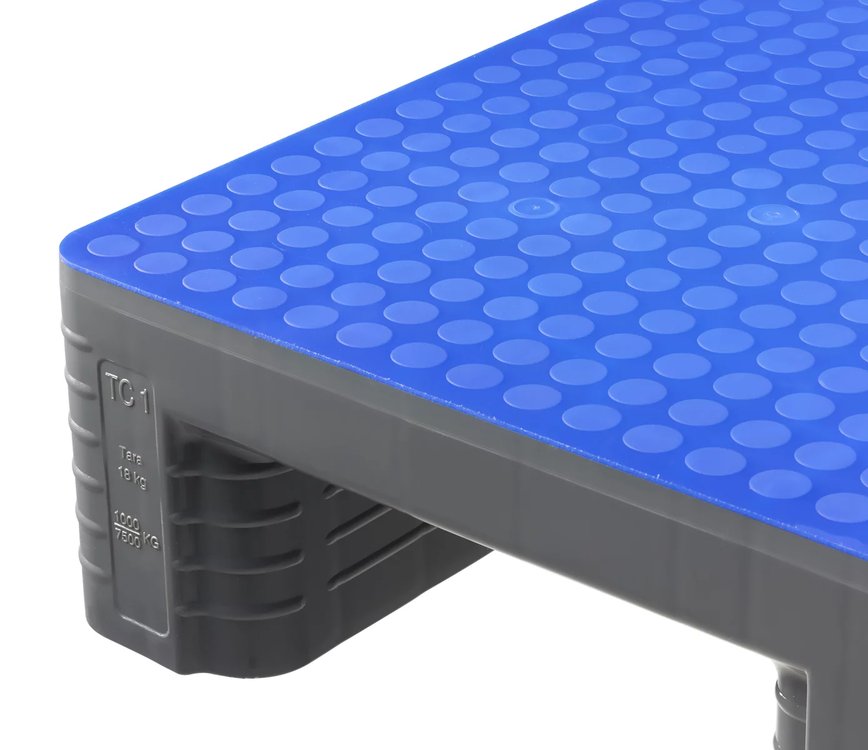

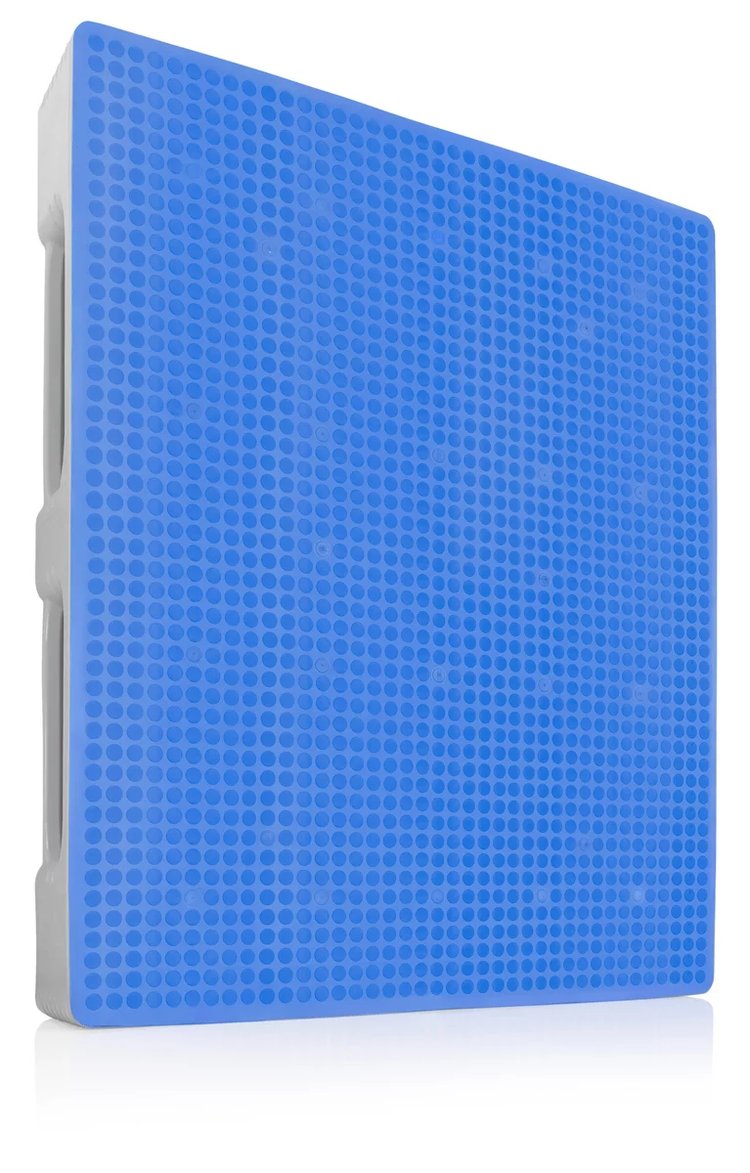

Feature: Full-surface Palgrip® anti-slip top deck

Options:

. Colour: light blue/blue, grey/blue

. Corrosion-protected reinforcement profiles, for a load-bearing capacity of up to 2000kg in high rack

. Lid

. without Palgrip® anti-slip top deck

. RFID transponder

. Customised printing and numbering available on request depending on quantity. Position upon consultation

Made in Germany

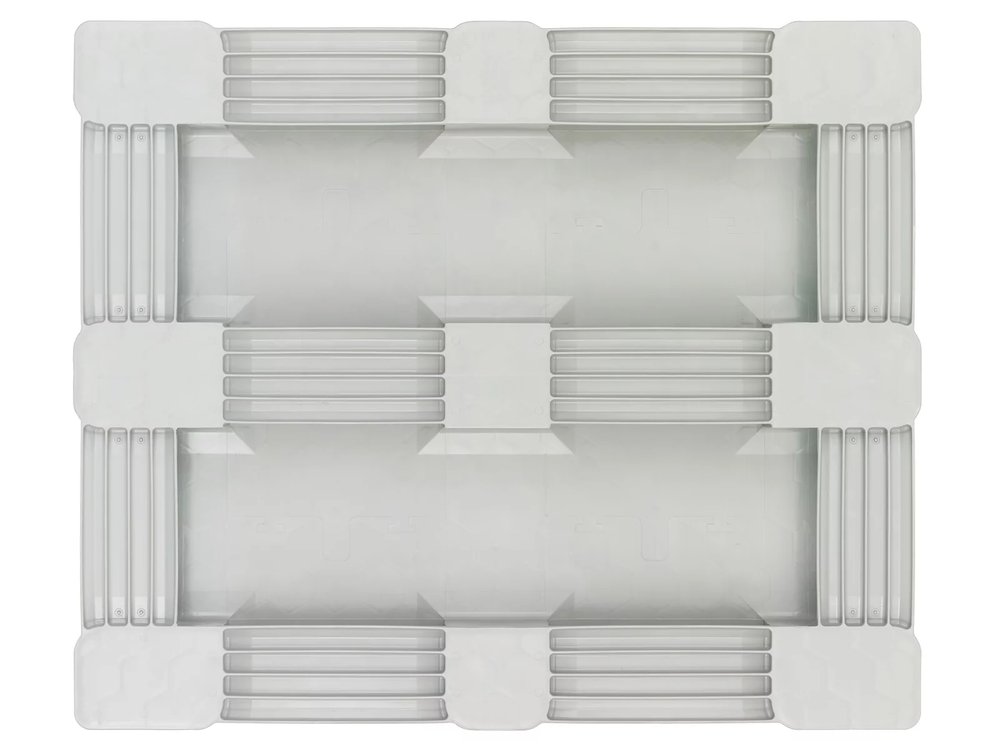

TC3 / TC3-5 Palgrip®

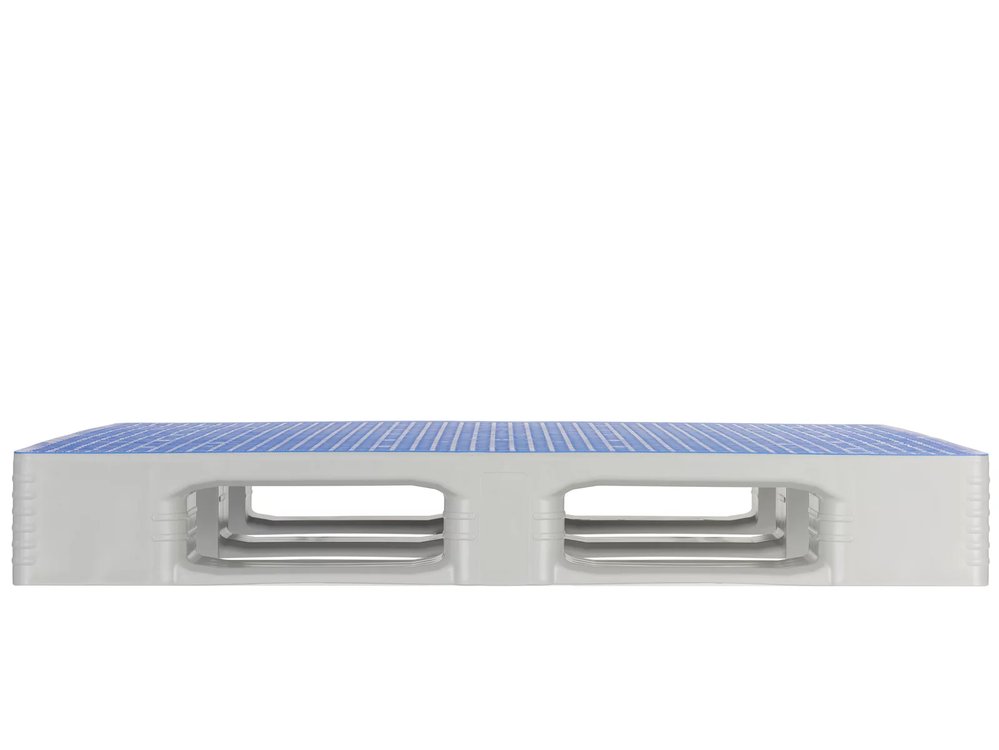

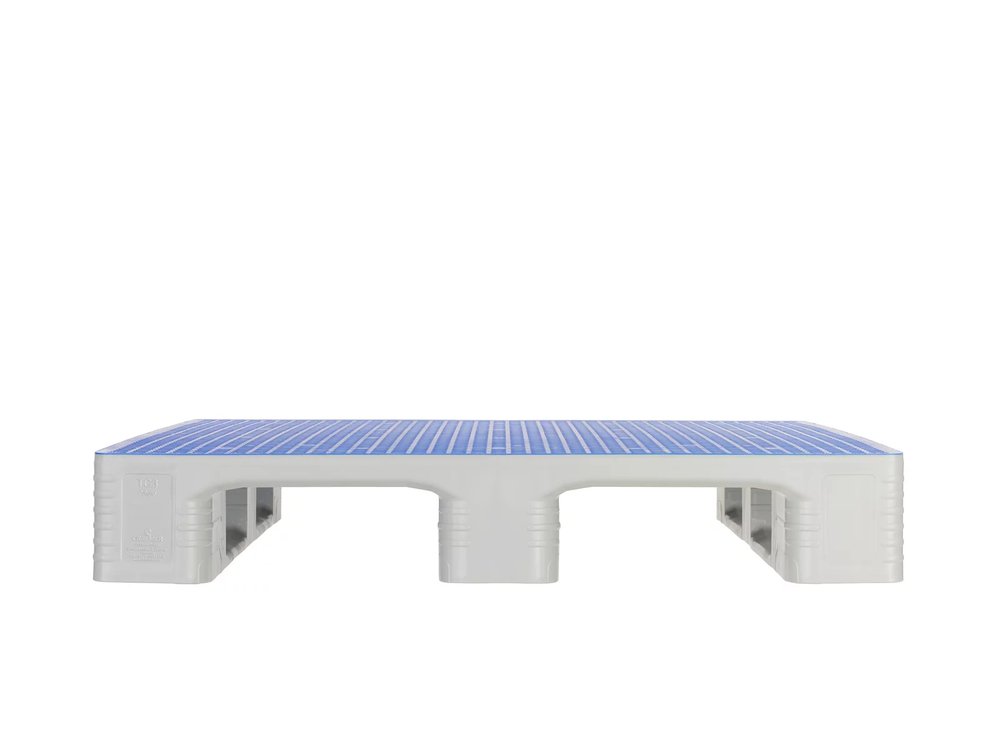

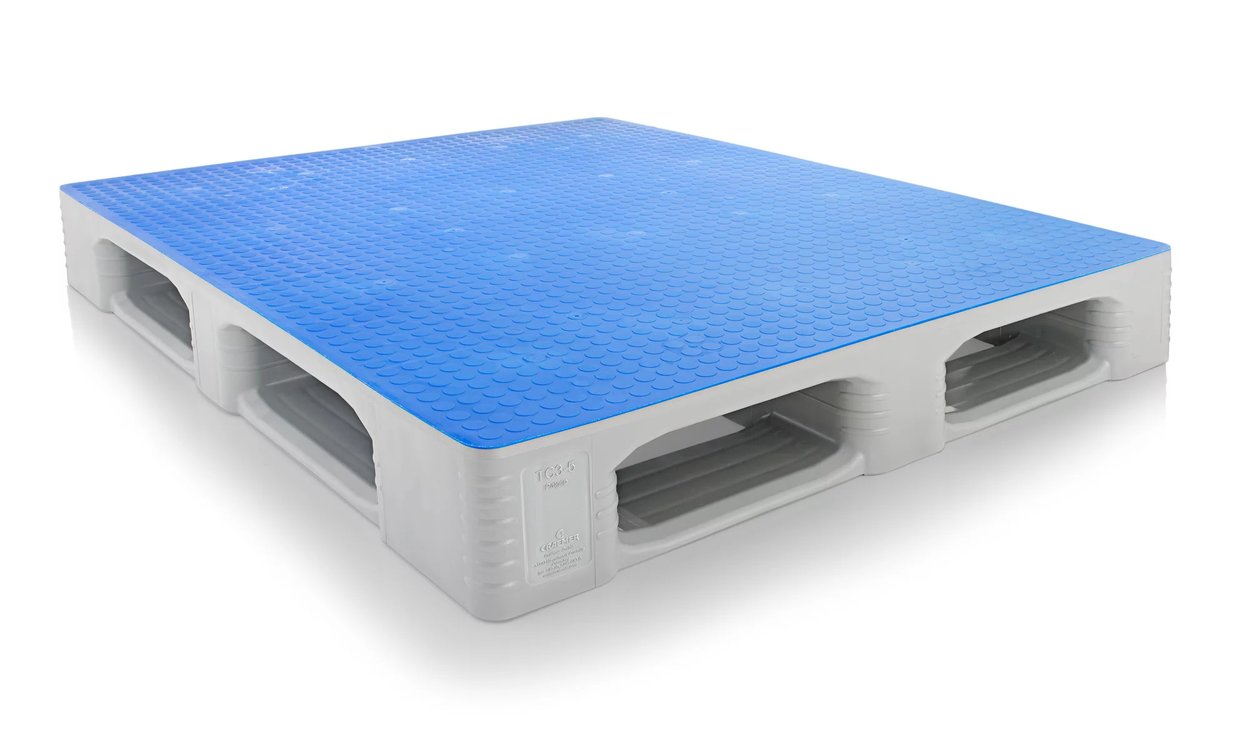

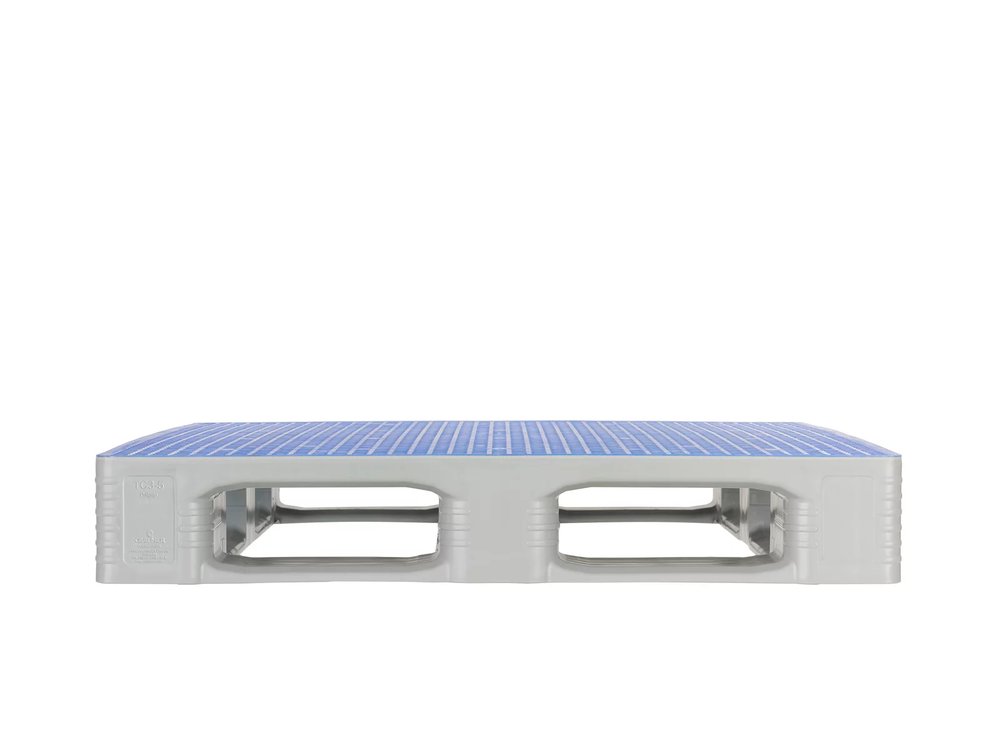

The TC3 / TC3-5 Palgrip® industrial pallet is available with 3 or 5 runners. The completely closed plastic pallet with full-surface Palgrip® anti-slip top deck offers a level of load safety that is unique on the market. Its high-quality grain structure is cold- and heat-resistant, abrasion-resistant and ensures absolute slip resistance even in high humidity or in an inclined position. The construction of welded top and bottom deck gives the TC3 / TC3-5 Palgrip® industrial pallet unrivalled dimensional stability in heavy-duty applications and highest impact and breakage resistance. In combination with its completely closed design, the TC3 / TC3-5 Palgrip® heavy-duty plastic pallet is ideally suited for use in all areas that require maximum hygiene.

Characteristics:
. Available with 3-runners (TC3) or 5-runners (TC3-5)
. High load-bearing capacity for heavy-duty applications
. Patented welding seam geometry of the top and bottom deck
. Solid wall thicknesses ensure highest impact and breakage resistance
. Dimensionally stable with first-class bending parameters, ideal for roller conveyors and automated high rack warehouses
. Optimal for transportation and storage of bagged goods
. Excellent cleaning properties
. No moisture remaining after drying process
. Chamfered edges on both sides of all runners for optimal handling with forklift trucks
. Full-surface Palgrip® anti-slip top deck
